Special Tent Starship? 20M
Range
Starship Tents
Tent image
Technical data
| Main ship clear-span width | 2000-4000 cm |
| Total clear-span width | 4050 cm |
| Main ship side height | 400 cm |
| Ridge height | 720 cm |
| Roof pitch | 18° |
| Bay distance | 500 cm |
| Gable uprights | 3 gable uprights (per end) |
| Longest component | 1100 cm |
| Minimum tent length | According to design |
| Maximum tent length | No limit |
| Main profile | 250 mm x 120 mm x 5/4 mm |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Variations | 1/2 octagonal at gable end |
| Flooring options | Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |

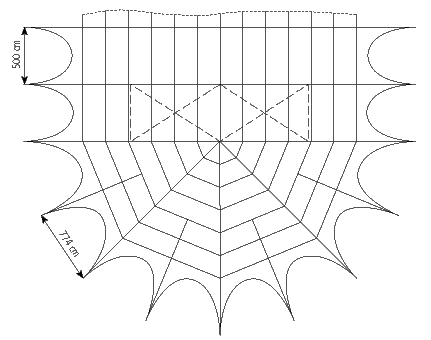

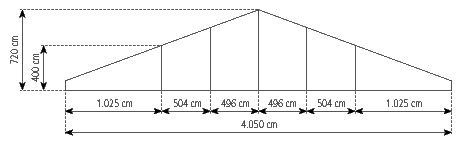

Tent top and side view image
